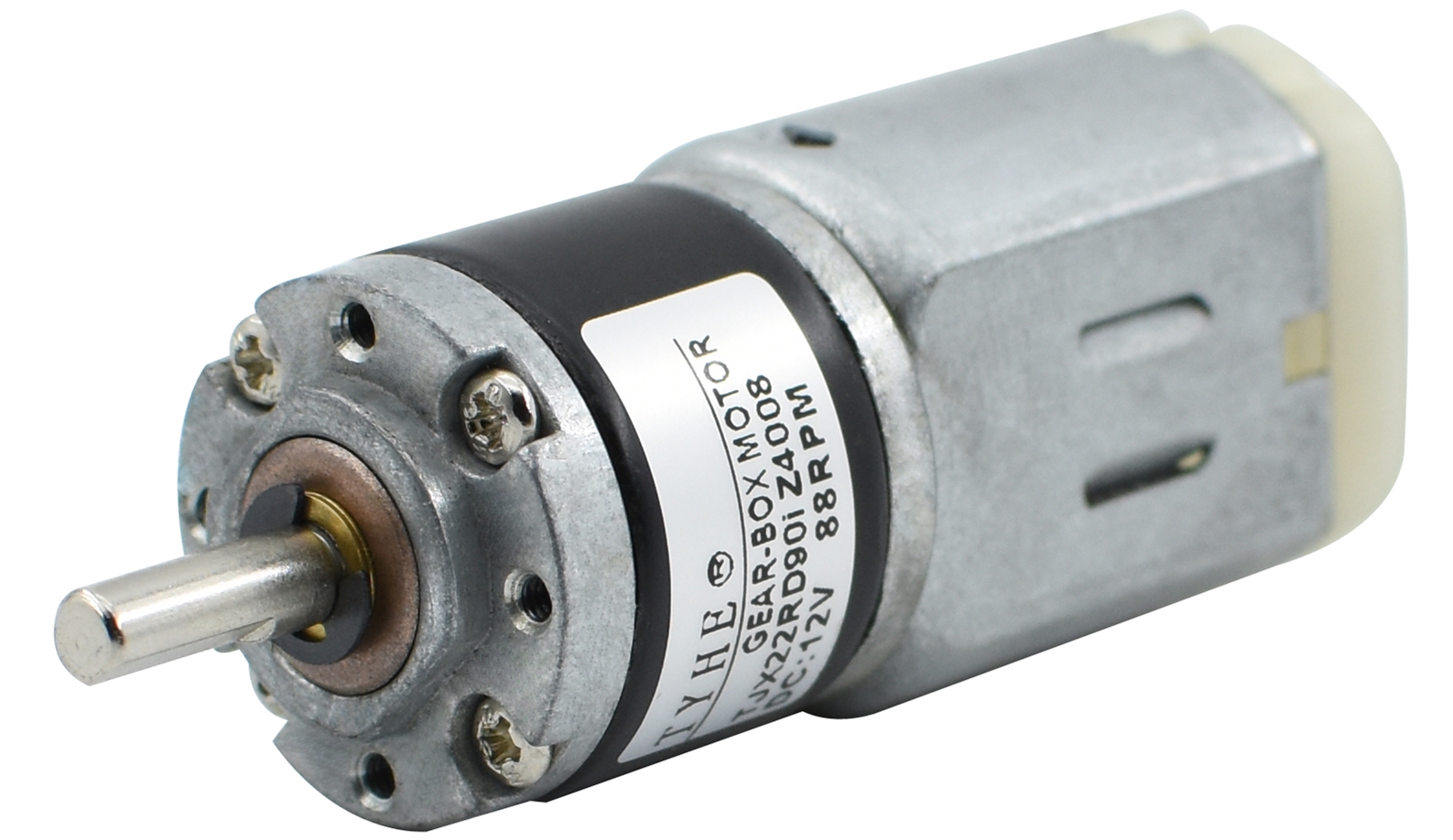

22mm 5rpm RF280 12 Volt DC Planetary Geared Motor 1.8nm 2nm Low Noise

Brand Name : TYHE

Model Number : TJX22RD

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : OD22mm

Voltage : 3v 6v 24v or customized

Speed : 100rpm Customized

Torque : 2N.m

Gear material : Steel gears

Commutation : brushed

Type : DC Planetary Gear Motor, Mini Motor

Keywords : Low Noise 22mm Diameter High Torque 1.8nm 2nm 5rpm RF280 6v 12v Dc Planetary Gear Motor

Contact Now

Products Description

Low Noise 22mm Diameter High Torque 1.8nm 2nm 5rpm RF280 6v 12v Dc Planetary Gear Motor

2D drawing

22mm 5rpm RF280 12 Volt DC Planetary Geared Motor 1.8nm 2nm Low Noise


22mm 5rpm RF280 12 Volt DC Planetary Geared Motor 1.8nm 2nm Low Noise

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
F280 12 6800 30 5440 0.10 1.30 0.74 61.71 3.90 0.60
F280 12 8000 60 6400 0.15 1.65 1.11 61.43 4.95 2.00
F280 12 12000 120 9600 0.38 2.82 2.83 62.17 8.46 2.67
F280 24 6800 20 5440 0.05 1.35 0.77 60.46 4.05 0.41
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-6800RPM Input 12V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
13 90 3.5 1554.3 0.67 4.10 12.29 1828.6 1.00 5.20 15.59
13 90 4.0 1360.0 0.67 4.68 14.04 1600.0 1.00 5.94 17.82
13 90 4.8 1145.3 0.67 5.56 16.67 1347.4 1.00 7.05 21.16
16.6 81 12.3 442.3 0.60 12.95 38.86 520.3 0.90 16.44 49.32
16.6 81 14.0 388.6 0.60 14.74 44.23 457.1 0.90 18.71 56.13
16.6 81 16.0 340.0 0.60 16.85 50.54 400.0 0.90 21.38 64.15
16.6 81 19.0 286.3 0.60 20.01 60.02 336.8 0.90 25.39 76.18
16.6 81 22.6 240.7 0.60 23.80 71.39 283.2 0.90 30.20 90.61
20.2 73 42.9 126.8 0.54 40.71 122.14 149.2 0.81 51.67 155.02
20.2 73 49.0 111.0 0.54 46.50 139.50 130.6 0.81 59.02 177.06
20.2 73 56.0 97.1 0.54 53.14 159.43 114.3 0.81 67.45 202.36
20.2 73 64.0 85.0 0.54 60.74 182.21 100.0 0.81 77.09 231.26
20.2 73 79.0 68.9 0.54 74.97 224.91 81.0 0.81 95.16 285.47
20.2 73 90.3 60.2 0.54 85.69 257.08 70.9 0.81 108.77 326.30
20.2 73 107.0 50.8 0.54 101.54 304.63 59.8 0.81 128.88 386.64
23.8 65.6 150.0 36.3 0.49 127.92 383.76 42.7 0.73 162.36 487.08
23.8 65.6 172.0 31.6 0.49 146.68 440.04 37.2 0.73 186.17 558.52
23.8 65.6 196.0 27.8 0.49 167.15 501.45 32.7 0.73 212.15 636.45
23.8 65.6 204.0 26.7 0.49 173.97 521.91 31.4 0.73 220.81 662.43
23.8 65.6 224.0 24.3 0.49 191.03 573.08 28.6 0.73 242.46 727.37
23.8 65.6 256.0 21.3 0.49 218.32 654.95 25.0 0.73 277.09 831.28
23.8 65.6 276.0 19.7 0.49 235.37 706.12 23.2 0.73 298.74 896.23
23.8 65.6 304.0 17.9 0.49 259.25 777.75 21.1 0.73 329.05 987.15
23.8 65.6 361.0 15.1 0.49 307.86 923.58 17.7 0.73 390.75 1172.24
23.8 65.6 375.0 14.5 0.49 319.80 959.40 17.1 0.73 405.90 1217.70
23.8 65.6 429.0 12.7 0.49 365.85 1097.55 14.9 0.73 464.35 1393.05
23.8 65.6 509.0 10.7 0.49 434.08 1302.23 12.6 0.73 550.94 1652.82
27.2 59 525.0 10.4 0.44 402.68 1208.03 12.2 0.65 511.09 1533.26
27.2 59 600.0 9.1 0.44 460.20 1380.60 10.7 0.65 584.10 1752.30
27.2 59 686.0 7.9 0.44 526.16 1578.49 9.3 0.65 667.82 1800.00
27.2 59 713.0 7.6 0.44 546.87 1640.61 9.0 0.65 694.11 1800.00
27.2 59 784.0 6.9 0.44 601.33 1800.00 8.2 0.65 763.22 1800.00
27.2 59 896.0 6.1 0.44 687.23 1800.00 7.1 0.65 872.26 1800.00
27.2 59 931.0 5.8 0.44 714.08 1800.00 6.9 0.65 906.33 1800.00
27.2 59 967.0 5.6 0.44 741.69 1800.00 6.6 0.65 941.37 1800.00
27.2 59 1024.0 5.3 0.44 785.41 1800.00 6.3 0.65 996.86 1800.00
27.2 59 1106.0 4.9 0.44 848.30 1800.00 5.8 0.65 1076.69 1800.00
27.2 59 1216.0 4.5 0.44 932.67 1800.00 5.3 0.65 1183.78 1800.00
27.2 59 1264.0 4.3 0.44 969.49 1800.00 5.1 0.65 1230.50 1800.00
27.2 59 1313.0 4.1 0.44 1007.07 1800.00 4.9 0.65 1278.21 1800.00
27.2 59 1444.0 3.8 0.44 1107.55 1800.00 4.4 0.65 1405.73 1800.00
27.2 59 1715.0 3.2 0.44 1315.41 1800.00 3.7 0.65 1669.55 1800.00
27.2 59 1782.0 3.1 0.44 1366.79 1800.00 3.6 0.65 1734.78 1800.00
27.2 59 2036.0 2.7 0.44 1561.61 1800.00 3.1 0.65 1800.00 1800.00
27.2 59 2418.0 2.2 0.44 1800.00 1800.00 2.6 0.65 1800.00 1800.00
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-12000RPM Input 24V-6800RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
13 90 3.5 2742.9 2.55 8.88 26.65 1554.3 0.69 4.25 12.76
13 90 4.0 2400.0 2.55 10.15 30.46 1360.0 0.69 4.86 14.58
13 90 4.8 2021.1 2.55 12.06 36.17 1145.3 0.69 5.77 17.31
16.6 81 12.3 780.5 2.30 28.10 84.29 442.3 0.62 13.45 40.35
16.6 81 14.0 685.7 2.30 31.98 95.94 388.6 0.62 15.31 45.93
16.6 81 16.0 600.0 2.30 36.55 109.64 340.0 0.62 17.50 52.49
16.6 81 19.0 505.3 2.30 43.40 130.20 286.3 0.62 20.78 62.33
16.6 81 22.6 424.8 2.30 51.62 154.87 240.7 0.62 24.71 74.14
20.2 73 42.9 223.8 2.07 88.31 264.94 126.8 0.56 42.28 126.83
20.2 73 49.0 195.9 2.07 100.87 302.61 111.0 0.56 48.29 144.87
20.2 73 56.0 171.4 2.07 115.28 345.84 97.1 0.56 55.19 165.56
20.2 73 64.0 150.0 2.07 131.75 395.25 85.0 0.56 63.07 189.22
20.2 73 79.0 121.5 2.07 162.63 487.89 68.9 0.56 77.85 233.56
20.2 73 90.3 106.3 2.07 185.89 557.67 60.2 0.56 88.99 266.97
20.2 73 107.0 89.7 2.07 220.27 660.81 50.8 0.56 105.45 316.35
23.8 65.6 150.0 64.0 1.86 277.49 832.46 36.3 0.50 132.84 398.52
23.8 65.6 172.0 55.8 1.86 318.19 954.56 31.6 0.50 152.32 456.97
23.8 65.6 196.0 49.0 1.86 362.58 1087.75 27.8 0.50 173.58 520.73
23.8 65.6 204.0 47.1 1.86 377.38 1132.15 26.7 0.50 180.66 541.99
23.8 65.6 224.0 42.9 1.86 414.38 1243.15 24.3 0.50 198.37 595.12
23.8 65.6 256.0 37.5 1.86 473.58 1420.74 21.3 0.50 226.71 680.14
23.8 65.6 276.0 34.8 1.86 510.58 1531.73 19.7 0.50 244.43 733.28
23.8 65.6 304.0 31.6 1.86 562.38 1687.13 17.9 0.50 269.22 807.67
23.8 65.6 361.0 26.6 1.86 667.82 1800.00 15.1 0.50 319.70 959.10
23.8 65.6 375.0 25.6 1.86 693.72 1800.00 14.5 0.50 332.10 996.30
23.8 65.6 429.0 22.4 1.86 793.62 1800.00 12.7 0.50 379.92 1139.77
23.8 65.6 509.0 18.9 1.86 941.61 1800.00 10.7 0.50 450.77 1352.31
27.2 59 525.0 18.3 1.67 873.50 1800.00 10.4 0.45 418.16 1254.49
27.2 59 600.0 16.0 1.67 998.28 1800.00 9.1 0.45 477.90 1433.70
27.2 59 686.0 14.0 1.67 1141.37 1800.00 7.9 0.45 546.40 1639.20
27.2 59 713.0 13.5 1.67 1186.29 1800.00 7.6 0.45 567.90 1703.71
27.2 59 784.0 12.2 1.67 1304.42 1800.00 6.9 0.45 624.46 1800.00
27.2 59 896.0 10.7 1.67 1490.76 1800.00 6.1 0.45 713.66 1800.00
27.2 59 931.0 10.3 1.67 1549.00 1800.00 5.8 0.45 741.54 1800.00
27.2 59 967.0 9.9 1.67 1608.89 1800.00 5.6 0.45 770.22 1800.00
27.2 59 1024.0 9.4 1.67 1703.73 1800.00 5.3 0.45 815.62 1800.00
27.2 59 1106.0 8.7 1.67 1800.00 1800.00 4.9 0.45 880.93 1800.00
27.2 59 1216.0 7.9 1.67 1800.00 1800.00 4.5 0.45 968.54 1800.00
27.2 59 1264.0 7.6 1.67 1800.00 1800.00 4.3 0.45 1006.78 1800.00
27.2 59 1313.0 7.3 1.67 1800.00 1800.00 4.1 0.45 1045.80 1800.00
27.2 59 1444.0 6.6 1.67 1800.00 1800.00 3.8 0.45 1150.15 1800.00
27.2 59 1715.0 5.6 1.67 1800.00 1800.00 3.2 0.45 1366.00 1800.00
27.2 59 1782.0 5.4 1.67 1800.00 1800.00 3.1 0.45 1419.36 1800.00
27.2 59 2036.0 4.7 1.67 1800.00 1800.00 2.7 0.45 1621.67 1800.00
27.2 59 2418.0 4.0 1.67 1800.00 1800.00 2.2 0.45 1800.00 1800.00

Please let us know your requirements and we will provide you with transmission solutions.
